How to manage storage pools¶
See the following sections for instructions on how to create, configure, view, and resize Storage pools.
View storage pools¶
You can display a list of all available storage pools and check their configuration.
To list all available storage pools, run:
lxc storage list
The storage pool created during initialization is usually called default or local.
To show detailed information about a specific pool, run:
lxc storage show <pool_name>
To see usage information for a specific pool, run:
lxc storage info <pool_name>
To view storage pools in the UI, select Pools from the Storage section of the main navigation. Select a pool from the list for detailed information.
Create a storage pool¶
LXD creates a storage pool during initialization. You can add more storage pools later, using the same or different driver. See the Storage drivers documentation to learn about available configuration options for each driver.
By default, LXD sets up loop-based storage with a sensible default size/quota: 20% of the free disk space, with a minimum of 5 GiB and a maximum of 30 GiB.
When using a Ceph storage driver, first see the Requirements for Ceph-based storage pools section below.
To create a storage pool, run:
lxc storage create <pool_name> <driver> [configuration_options...]
See the Storage drivers documentation for a list of available configuration options for each driver.
To create a storage pool, select Pools from the Storage section of the main navigation, then click Create pool. On the resulting screen, the Name and Driver fields are required.

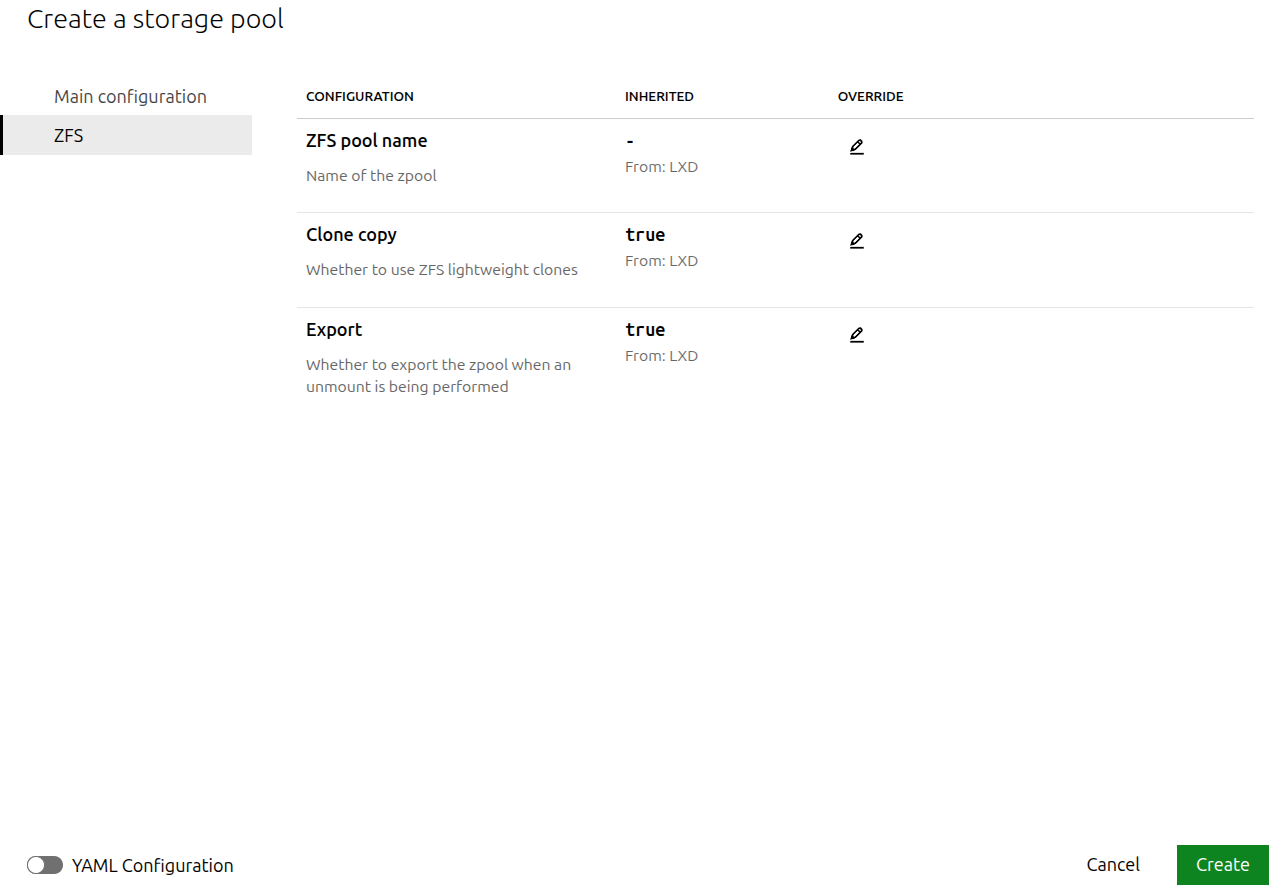

Once you select a driver, the fields below the driver selection dropdown might change. Furthermore, some drivers also offer a secondary settings page, as shown in the example below for the ZFS driver:
After creating a storage pool, back up its configuration for future recovery.
Examples¶
The following CLI syntax examples show how to create a storage pool using different storage drivers.
Create a directory pool named pool1:
lxc storage create pool1 dir
Use the existing directory /data/lxd for pool2:
lxc storage create pool2 dir source=/data/lxd
Create a loop-backed pool named pool1:
lxc storage create pool1 btrfs
You can specify source as either an existing filesystem path or a block device.
Reuse the existing Btrfs filesystem at /some/path for pool2:
lxc storage create pool2 btrfs source=/some/path
Use a block device at /dev/sdX to create pool3:
lxc storage create pool3 btrfs source=/dev/sdX
Create a loop-backed pool named pool1 (the LVM volume group will also be called pool1):
lxc storage create pool1 lvm
Use an existing LVM volume group called my-pool for pool2:
lxc storage create pool2 lvm source=my-pool
Use an existing LVM thin pool called my-pool in volume group my-vg for pool3:
lxc storage create pool3 lvm source=my-vg lvm.thinpool_name=my-pool
Create a pool named pool4 on /dev/sdX (the LVM volume group will also be called pool4):
lxc storage create pool4 lvm source=/dev/sdX
Create a pool named pool5 on /dev/sdX with the LVM volume group name my-pool:
lxc storage create pool5 lvm source=/dev/sdX lvm.vg_name=my-pool
Create a loop-backed pool named pool1 (the ZFS zpool will also be called pool1):
lxc storage create pool1 zfs
Create a loop-backed pool named pool2 with the ZFS zpool name my-tank:
lxc storage create pool2 zfs zfs.pool_name=my-tank
Use the existing ZFS zpool my-tank for pool3:
lxc storage create pool3 zfs source=my-tank
Use the existing ZFS dataset my-tank/slice for pool4:
lxc storage create pool4 zfs source=my-tank/slice
Use the existing ZFS dataset my-tank/zvol for pool5 and configure it to use ZFS block mode:
lxc storage create pool5 zfs source=my-tank/zvol volume.zfs.block_mode=yes
Create a pool named pool6 on /dev/sdX (the ZFS zpool will also be called pool6):
lxc storage create pool6 zfs source=/dev/sdX
Create a pool named pool7 on /dev/sdX with the ZFS zpool name my-tank:
lxc storage create pool7 zfs source=/dev/sdX zfs.pool_name=my-tank
For Ceph-based storage pools, first see the Requirements for Ceph-based storage pools.
Ceph RBD
Create an OSD storage pool named pool1 in the default Ceph cluster (named ceph):
lxc storage create pool1 ceph
Create an OSD storage pool named pool2 in the Ceph cluster my-cluster:
lxc storage create pool2 ceph ceph.cluster_name=my-cluster
Create an OSD storage pool named pool3 with the on-disk name my-osd in the default Ceph cluster:
lxc storage create pool3 ceph ceph.osd.pool_name=my-osd
Use the existing OSD storage pool my-already-existing-osd for pool4:
lxc storage create pool4 ceph ceph.osd.pool_name=my-already-existing-osd
Use the existing OSD erasure-coded pool ecpool and the OSD replicated pool rpl-pool for pool5:
lxc storage create pool5 ceph ceph.osd.pool_name=rpl-pool ceph.osd.data_pool_name=ecpool
Create a CephFS pool
Note
Each CephFS file system consists of two OSD storage pools, one for the actual data and one for the file metadata.
Use the existing CephFS file system my-filesystem for pool1:
lxc storage create pool1 cephfs cephfs.path=my-filesystem
Use the sub-directory my-directory from my-filesystem for pool2:
lxc storage create pool2 cephfs cephfs.path=my-filesystem/my-directory
Create a CephFS file system my-filesystem with a data pool called my-data and a metadata pool called my-metadata for pool3:
lxc storage create pool3 cephfs cephfs.path=my-filesystem cephfs.create_missing=true cephfs.data_pool=my-data cephfs.meta_pool=my-metadata
Ceph Object
A RADOS Gateway endpoint is required for a Ceph Object storage pool. See: Ceph Object and radosgw.
For a non-clustered LXD server, create pool1 by passing in a Ceph Object Gateway endpoint (the endpoint shown below is only an example; you must use your own):
lxc storage create pool1 cephobject cephobject.radosgw.endpoint=http://192.0.2.10:8080
If your LXD server is clustered, such as in a MicroCloud deployment, see: Create a storage pool in a cluster.
Create a storage pool named pool1 using the PowerFlex pool sp1 in the protection domain pd1:
lxc storage create pool1 powerflex powerflex.pool=sp1 powerflex.domain=pd1 powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo
Create a storage pool named pool2 using the ID of PowerFlex pool sp1:
lxc storage create pool2 powerflex powerflex.pool=<ID of sp1> powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo
Create a storage pool named pool3 that uses PowerFlex volume snapshots (see Limitations) when creating volume copies:
lxc storage create pool3 powerflex powerflex.snapshot_copy=true powerflex.pool=<id of sp1> powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo
Create a storage pool named pool4 that uses a PowerFlex gateway with a certificate that is not trusted:
lxc storage create pool4 powerflex powerflex.gateway.verify=false powerflex.pool=<id of sp1> powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo
Create a storage pool named pool5 that explicitly uses the PowerFlex SDC:
lxc storage create pool5 powerflex powerflex.mode=sdc powerflex.pool=<id of sp1> powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo
Create a storage pool named pool1 that uses NVMe/TCP by default:
lxc storage create pool1 pure pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token>
Create a storage pool named pool2 that uses a Pure Storage gateway with a certificate that is not trusted:
lxc storage create pool2 pure pure.gateway=https://<pure-storage-address> pure.gateway.verify=false pure.api.token=<pure-storage-api-token>
Create a storage pool named pool3 that uses iSCSI to connect to Pure Storage array:
lxc storage create pool3 pure pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token> pure.mode=iscsi
Create a storage pool named pool4 that uses NVMe/TCP to connect to Pure Storage array via specific target addresses:
lxc storage create pool4 pure pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token> pure.mode=nvme pure.target=<target_address_1>,<target_address_2>
Create a storage pool named pool1 that uses NVMe/TCP by default:
lxc storage create pool1 alletra alletra.wsapi=https://<alletra-storage-address> alletra.user.name=<alletra-storage-username> alletra.user.password=<alletra-storage-password>
Create a storage pool named pool2 that uses a HPE Alletra gateway with a certificate that is not trusted:
lxc storage create pool2 alletra alletra.wsapi=https://<alletra-storage-address> alletra.wsapi.verify=false alletra.user.name=<alletra-storage-username> alletra.user.password=<alletra-storage-password>
Create a storage pool named pool3 that uses NVMe/TCP to connect to HPE Alletra array via specific target addresses:
lxc storage create pool3 alletra alletra.wsapi=https://<alletra-storage-address> alletra.user.name=<alletra-storage-username> alletra.user.password=<alletra-storage-password> alletra.mode=nvme alletra.target=<target_address_1>,<target_address_2>
Create a storage pool in a cluster¶
If you want to add a storage pool to a LXD cluster, you must create the storage pool for each cluster member separately. This is because the configuration might differ among cluster members (for example, the storage location or the size of the pool).
If any cluster members use disks that already contain a LXD storage pool, or you want to recover an existing remote storage pool, refer to the Recover a storage pool section.
To create a storage pool via the CLI, start by creating a pending storage pool on each member with the --target=<cluster_member> flag and the appropriate configuration for the member.
Make sure to use the same storage pool name for all members. Then create the storage pool without specifying the --target flag to actually set it up.
For further details, see How to configure storage for a cluster.
Ceph-based storage pools in clusters
For most storage drivers, the storage pools exist locally on each cluster member. That means if you create a storage volume in a storage pool on one member, it is not available for other cluster members.
This behavior is different for Ceph-based storage drivers (ceph, cephfs and cephobject). When using these drivers, each storage pool exists in one central location and therefore, all cluster members access the same storage pool with the same storage volumes.

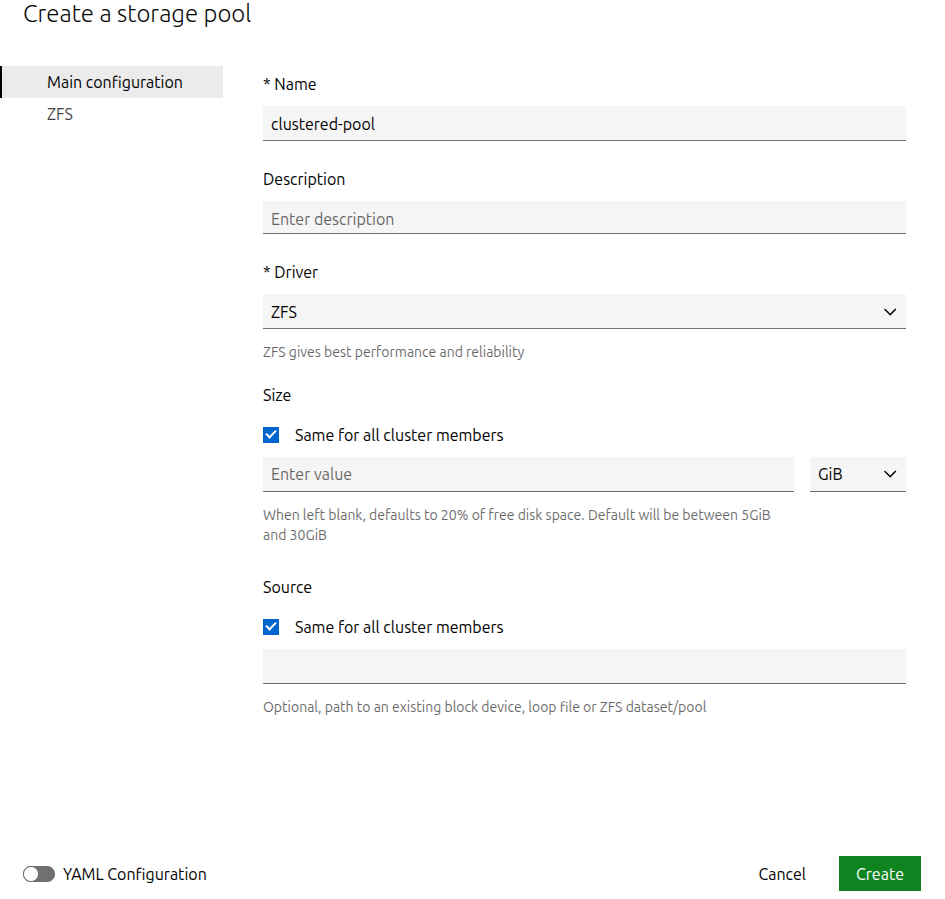

Follow the same method to create a storage pool as for a non-clustered LXD server.

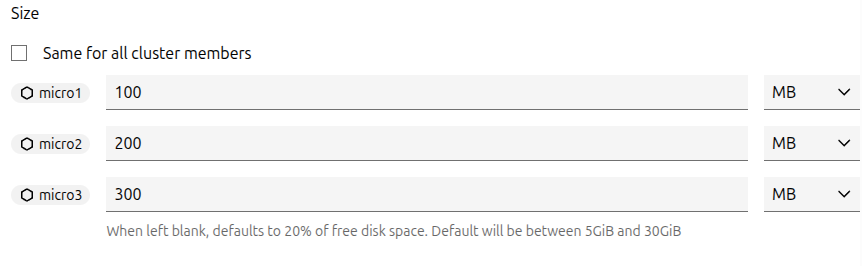

Depending on the selected driver, some settings can be configured per cluster member or applied globally to the cluster, as shown in the example below for the ZFS driver:
After creating a storage pool, back up its configuration for future recovery.
Examples¶
The following CLI syntax examples show how to create a storage pool in a cluster using different storage drivers.
Create a storage pool named my-pool using the ZFS driver at different locations and with different sizes on three cluster members:
user@host:~$ lxc storage create my-pool zfs source=/dev/sdX size=10GiB --target=vm01
Storage pool my-pool pending on member vm01
user@host:~$ lxc storage create my-pool zfs source=/dev/sdX size=15GiB --target=vm02
Storage pool my-pool pending on member vm02
user@host:~$ lxc storage create my-pool zfs source=/dev/sdY size=10GiB --target=vm03
Storage pool my-pool pending on member vm03
user@host:~$ lxc storage create my-pool zfs
Storage pool my-pool created
For Ceph-based storage pools, first see the Requirements for Ceph-based storage pools.
Ceph RBD
Create a storage pool named my-ceph-pool using the Ceph RBD driver and the on-disk name my-osd on three cluster members.
Because the ceph.osd.pool_name configuration setting isn’t member-specific, it must be set when creating the actual storage pool:
user@host:~$ lxc storage create my-ceph-pool ceph --target=vm01
Storage pool my-ceph-pool pending on member vm01
user@host:~$ lxc storage create my-ceph-pool ceph --target=vm02
Storage pool my-ceph-pool pending on member vm02
user@host:~$ lxc storage create my-ceph-pool ceph --target=vm03
Storage pool my-ceph-pool pending on member vm03
user@host:~$ lxc storage create my-ceph-pool ceph ceph.osd.pool_name=my-osd
Storage pool my-ceph-pool created
Ceph Object
Create a storage pool named my-cephobject-pool using the Ceph Object driver and a preconfigured RADOS Gateway endpoint (the endpoint shown below is only an example):
user@host:~$ lxc storage create my-cephobject-pool cephobject --target=vm01
Storage pool my-cephobject-pool pending on member vm01
user@host:~$ lxc storage create my-cephobject-pool cephobject --target=vm02
Storage pool my-cephobject-pool pending on member vm02
user@host:~$ lxc storage create my-cephobject-pool cephobject --target=vm03
Storage pool my-cephobject-pool pending on member vm03
user@host:~$ lxc storage create my-cephobject-pool cephobject cephobject.radosgw.endpoint=http://192.0.2.10:8080
Storage pool my-cephobject-pool created
Create a storage pool named my-powerflex-pool using the Dell PowerFlex driver in SDC mode and the pool sp1 in protection domain pd1:
user@host:~$ lxc storage create my-powerflex-pool powerflex --target=vm01
Storage pool my-powerflex-pool pending on member vm01
user@host:~$ lxc storage create my-powerflex-pool powerflex --target=vm02
Storage pool my-powerflex-pool pending on member vm02
user@host:~$ lxc storage create my-powerflex-pool powerflex --target=vm03
Storage pool my-powerflex-pool pending on member vm03
user@host:~$ lxc storage create my-powerflex-pool powerflex powerflex.mode=sdc powerflex.pool=sp1 powerflex.domain=pd1 powerflex.gateway=https://powerflex powerflex.user.name=lxd powerflex.user.password=foo
Storage pool my-powerflex-pool created
Create a storage pool named my-purestorage-pool using the Pure Storage driver:
user@host:~$ lxc storage create my-purestorage-pool pure --target=vm01
Storage pool my-purestorage-pool pending on member vm01
user@host:~$ lxc storage create my-purestorage-pool pure --target=vm02
Storage pool my-purestorage-pool pending on member vm02
user@host:~$ lxc storage create my-purestorage-pool pure --target=vm03
Storage pool my-purestorage-pool pending on member vm03
user@host:~$ lxc storage create my-purestorage-pool pure pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token>
Storage pool my-purestorage-pool created
Create a storage pool named my-alletrastorage-pool using the HPE Alletra driver:
user@host:~$ lxc storage create my-alletrastorage-pool alletra --target=vm01
Storage pool my-alletrastorage-pool pending on member vm01
user@host:~$ lxc storage create my-alletrastorage-pool alletra --target=vm02
Storage pool my-alletrastorage-pool pending on member vm02
user@host:~$ lxc storage create my-alletrastorage-pool alletra --target=vm03
Storage pool my-alletrastorage-pool pending on member vm03
user@host:~$ lxc storage create my-alletrastorage-pool alletra alletra.wsapi=https://<alletra-storage-address> alletra.user.name=<alletra-storage-username> alletra.user.password=<alletra-storage-password>
Storage pool my-alletrastorage-pool created
Back up storage pool configuration¶
To assist future recovery in case a storage pool malfunctions, maintain a record of storage pools as a backup. For each pool, record the driver type and its config options shown by running:
lxc storage show <pool_name>
The config options vary by driver type. Keep this record in a safe place, and update it if you update a storage pool’s configuration.
For pools in a cluster¶
For local storage pools in a cluster, the source value is member-specific and must be obtained from each cluster member. For non-local storage pools with the source config option, its value is shared across all cluster members.
Recover a storage pool¶
You might need to recover a storage pool when setting up a new LXD server or cluster with non-pristine storage disks, or when trying to access remote storage that was previously used by another LXD deployment.
Using recovery, you can restore instances, custom volumes, and buckets that are still located on those storage pools.
Get storage pool configuration¶
Before recovering a storage pool, you need to know its original configuration: the driver type and any config options that differ from the default. Ideally, you have access to a record of the configuration as described in Back up storage pool configuration.
If you do not have access to this information, try alternate ways to retrieve it. If the pool is still available in the LXD database, you can use lxc storage show:
lxc storage show <pool_name>
You can also try this command, which provides hints about missing storage pools and their original configuration, if such information can be discovered:
lxd recover
See the Storage drivers documentation for a list of available configuration options for each driver.
Recover a pool¶
To recover a storage pool, use the lxc storage create command with the source.recover=true flag and the pool’s original, non-default configuration options:
lxc storage create <pool_name> <driver> source.recover=true [original_pool_configuration_options...]
Examples¶
The following CLI syntax examples show how to recover different types of storage pools.
Recover a pool named pool1:
lxc storage create pool1 dir source.recover=true source=/data/lxd
Recover a pool named pool1 on the existing Btrfs filesystem at /some/path:
lxc storage create pool1 btrfs source.recover=true source=/some/path
Recover a pool named pool2 on /dev/sdX:
lxc storage create pool2 btrfs source.recover=true source=/dev/sdX
Existing LVM volume groups
Get a list of existing LVM volume groups by running vgs.
Recover a pool named pool1 using the existing LVM volume group called my-pool:
lxc storage create pool1 lvm source.recover=true source=my-pool
Recover a pool named pool2 using the existing LVM thin pool called my-pool in volume group my-vg:
lxc storage create pool2 lvm source.recover=true source=my-vg lvm.thinpool_name=my-pool
Recover a pool named pool3 on /dev/sdX:
lxc storage create pool3 lvm source.recover=true source=/dev/sdX
Recover a pool named pool4 on /dev/sdX with the LVM volume group name my-pool:
lxc storage create pool4 lvm source.recover=true source=/dev/sdX lvm.vg_name=my-pool
Existing ZFS pools
Get a list of existing ZFS pools by running zpool list.
Recover a pool named pool1 using the existing ZFS pool my-tank:
lxc storage create pool1 zfs source.recover=true source=my-tank
Recover a pool named pool2 using the existing ZFS dataset my-tank/slice:
lxc storage create pool2 zfs source.recover=true source=my-tank/slice
For Ceph-based storage pools, first see the Requirements for Ceph-based storage pools.
Ceph RBD
Existing OSD pools
Get a list of existing OSD pools by running ceph osd pool ls.
Recover a pool named pool1 using the existing OSD storage pool my-osd:
lxc storage create pool1 ceph source.recover=true ceph.osd.pool_name=my-osd
Recover a pool named pool2 using the existing OSD storage pool my-osd in the Ceph cluster my-cluster:
lxc storage create pool2 ceph source.recover=true ceph.osd.pool_name=my-osd ceph.cluster_name=my-cluster
CephFS
Existing CephFS file systems
Get a list of existing CephFS file systems by running ceph fs volume ls.
Recover a pool named pool1 using the existing CephFS file system my-filesystem:
lxc storage create pool1 cephfs source.recover=true cephfs.path=my-filesystem
Recover a pool named pool2 using the existing sub-directory my-directory on the Ceph FS file system my-filesystem:
lxc storage create pool2 cephfs source.recover=true cephfs.path=my-filesystem/my-directory
Ceph Object
The Ceph Object storage driver doesn’t require providing any additional configuration for recovery. Use the regular Ceph object pool creation command for recovery.
Ceph Object does not yet support recovery of existing buckets already present on the radosgw.
You do not need to provide any additional configuration for recovery with the PowerFlex storage driver. Use the regular PowerFlex pool creation command for recovery.
This is because when creating a PowerFlex pool, LXD does not create any entities on the storage array. Instead, it uses an existing pool inside the respective protection domain.
Recover a pool named pool1 using the existing pod pool1:
lxc storage create pool1 pure source.recover=true pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token>
Recover a pool named pool2 using the existing pod pool2 and iSCSI to connect to Pure Storage array:
lxc storage create pool2 pure source.recover=true pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token> pure.mode=iscsi
Recover a pool named pool3 using the existing pod pool3 and NVMe/TCP to connect to Pure Storage array via specific target address:
lxc storage create pool3 pure source.recover=true pure.gateway=https://<pure-storage-address> pure.api.token=<pure-storage-api-token> pure.mode=nvme pure.target=<target_address_1>,<target_address_2>
Recover a pool named pool1 using the existing volume set pool1:
lxc storage create pool1 alletra source.recover=true alletra.wsapi=https://<alletra-storage-address> alletra.user.name=<alletra-storage-username> alletra.user.password=<alletra-storage-password>
Recover a pool named pool2 using the existing volume set pool2 and accept a not trusted certificate of the HPE Alletra gateway:
lxc storage create pool2 alletra source.recover=true alletra.wsapi=https://<alletra-storage-address> alletra.wsapi.verify=false alletra.user.name=<alletra-storage-username> alletra.user.password=<alletra-storage-password>
Recover a pool named pool3 using the existing volume set pool3 and NVMe/TCP to connect to HPE Alletra array via specific target address:
lxc storage create pool3 alletra source.recover=true alletra.wsapi=https://<alletra-storage-address> alletra.user.name=<alletra-storage-username> alletra.user.password=<alletra-storage-password> alletra.mode=nvme alletra.target=<target_address_1>,<target_address_2>
Configure a storage pool¶
See the Storage drivers page for the available configuration options for each storage driver.
General keys for a storage pool (like source) are top-level. Driver-specific keys are namespaced by the driver name.
Use the following command to set configuration options for a storage pool:
lxc storage set <pool_name> <key> <value>
For example, to turn off compression during storage pool migration for a dir storage pool, use the following command:
lxc storage set my-dir-pool rsync.compression false
You can also edit the storage pool configuration by using the following command:
lxc storage edit <pool_name>
To configure a storage pool, select Pools from the Storage section of the main navigation.
The resulting screen shows a list of existing storage pools. Click a pool’s name to access its details.
Go to the Configuration tab. Here, you can configure settings such as the storage pool description.
After making changes, click the Save changes button. This button also displays the number of changes you have made.
We recommend that you maintain a backup of the configuration of your storage pools for future recovery. Make sure to update this backup after your edited configuration.
Resize a storage pool¶
If you need more storage, you can increase the size (quota) of your storage pool. You can only grow the pool (increase its size), not shrink it.
You can only resize loop-backed storage pools that are managed by LXD, meaning they must use the Btrfs, LVM, or ZFS storage drivers.
In the CLI, resize a storage pool by changing the size configuration key:
lxc storage set <pool_name> size=<new_size>
To resize a storage pool in the UI, select Pools from the Storage section of the main navigation.
Click the name of a storage pool to open its details page, then go to its Configuration tab. Edit the Size field.
After making changes, click the Save changes button. This button also displays the number of changes you have made before you save.
In clustered environments, the Size field appears as a per-member selector, allowing you to configure the size for each cluster member.
If you later need to recover a storage pool and the pool has a non-default size configuration option, that option must be included for recovery. If needed, update the size in your backup of the storage pool configuration.
Requirements for Ceph-based storage pools¶
For Ceph-based storage pools, the requirements below must be met before you can Create a storage pool or Create a storage pool in a cluster.
Ceph cluster¶
Before you can create a storage pool that uses the Ceph RBD, CephFS, or Ceph Object driver, you must have access to a Ceph cluster.
To deploy a Ceph cluster, we recommend using MicroCloud. If you have completed the default MicroCloud setup, you already have a Ceph cluster deployed through MicroCeph, so this requirement is met. MicroCeph is a lightweight way of deploying and managing a Ceph cluster.
If you do not use MicroCloud, set up a standalone deployment of MicroCeph before you continue.
Ceph Object and radosgw¶
Storage pools that use the Ceph Object driver require a Ceph cluster with the RADOS Gateway (also known as RGW or radosgw) enabled.
Check if radosgw is already enabled¶
To check if the RADOS Gateway is already enabled in MicroCeph, run this command from one of its cluster members:
microceph status
In the output, look for a cluster member with rgw in its Services list.
Example:
root@micro1:~# microceph status
MicroCeph deployment summary:
- micro1 (192.0.2.10)
Services: mds, mgr, mon, rgw, osd
Disks: 1
- micro2 (192.0.2.20)
Services: mds, mgr, mon, osd
Disks: 1
In the output above, notice rgw in the list of Services for micro1. This means that this cluster member is running the RADOS Gateway.
Look for rgw in your output. If you do not see it, you must Enable radosgw.
If you do see it, you’ll need the corresponding port number. On the cluster member with the rgw service, run:
sudo ss -ltnp | grep radosgw
Example:
root@micro1:~# sudo ss -ltnp | grep radosgw
LISTEN 0 4096 0.0.0.0:8080 0.0.0.0:* users:(("radosgw",pid=11345,fd=60))
LISTEN 0 4096 [::]:8080 [::]:* users:(("radosgw",pid=11345,fd=61))
The output above shows that the radosgw port number is 8080.
Enable radosgw¶
If you did not find rgw in the Services list for any of your cluster members in the output from microceph status, then you must enable the RADOS Gateway. On one of the Ceph cluster members, run:
sudo microceph enable rgw --port 8080
We include the --port 8080 flag because if unspecified, the default port is 80. This default is a commonly used port number that can often cause conflicts with other services. You are not required to use 8080 — if needed, use a different port number.
The RADOS Gateway endpoint¶
The full RADOS Gateway endpoint includes the HTTP protocol, the IP address of the Ceph cluster member where the rgw service is enabled, and the port number specified. Example: http://192.0.2.10:8080.
